Chapter 14. Cloud Vision
An overview of image recognition
The different types of recognition supported by Cloud Vision
How Cloud Vision pricing is calculated
An example evaluating whether profile images are acceptable
Difficult to get a computer to recognize an image.
Things that are hard to define are typically tricky to express as code.
Cloud Vision, look at image recognition as being able to slap a bunch of annotations on a given image.

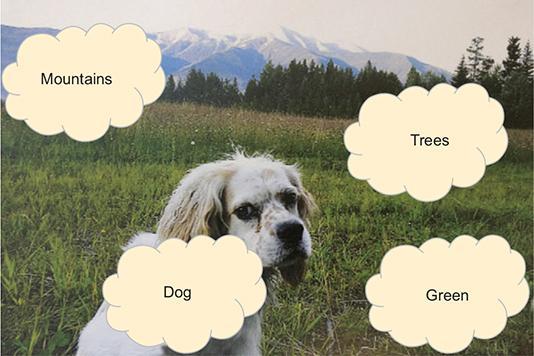

How a human might label an image, adding several annotations to different areas of the image.
Annotations aren’t limited to things like “dog” but can be other attributes, such as colors like “green.”
Conceptual understanding.
Argument on the internet over the color of a dress.
Millions of people couldn’t decide on the color of a dress.
Image recognition is super complicated.
Image recognition is not an exact science.
Encourage you to build some fudge factor into your code.
Taking the results of a particular annotation as a suggestion rather than absolute fact.
14.1. Annotating images

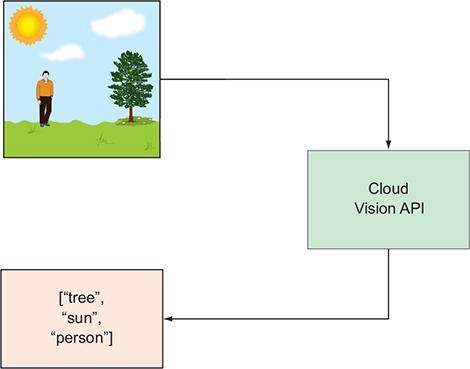

General flow for annotating images is a simple request-response pattern.
Send an image along with the desired annotations you’re interested in to the Cloud Vision API.
API sends back a response containing all of those annotations.
Send your image and get back some details about it.
Because there’s no state to maintain, specify which annotation types you’re interested in, and the result will be limited to those.
14.1.1. Label annotations
Labels are a quick textual description of a concept that Cloud Vision
recognized in the image.
Image recognition is not an exercise leading to absolute facts.
Ask the Cloud Vision API to put label annotations on your image.
In general it’s best to treat the results as suggestions to be validated
later by a human.
labels: dog, mammal, vertebrate, setter, dog like mammal
labels go from specific to vague.
Ask Cloud Vision, “Show me only labels that you’re 75% confident in”?
Turn on verbose mode
Provides more details
{ desc: 'dog', mid: '/m/0bt9lr', score: 96.969336 }
{ desc: 'mammal', mid: '/m/04rky', score: 92.070323 }
{ desc: 'vertebrate', mid: '/m/09686', score: 89.664793 }
{ desc: 'setter', mid: '/m/039ndd', score: 69.060057 }
{ desc: 'dog like mammal', mid: '/m/01z5f', score: 68.510407 }
Label values are the same, also include two extra fields: mid and score.
Mid value is an opaque ID for the label that you should store.
Score is a confidence level for each label
Indication of how confident the Vision API is in each label
See only the labels with confidence greater than 75%
Accurate labels: dog, mammal, vertebrate.
14.1.2. Faces
Details about faces in the image
Details about the emotions of the face in the picture
Happiness, anger, and surprise
Scores, confidences, and likelihoods.
Simple test to detect whether an image has a face.
the dog’s face doesn’t count:
Nope! There's no face in that image.
Face and all the various annotations that come back on the image.
You’re very sure that there is a face, and that the face is happy
How sure are we that there is a face? 99.97406%
Does the face look happy? Yes
Does the face look angry? No
How sure are we that there is a face? 99.97406005859375%
Are we certain the face looks happy? Yes
Are we certain the face looks angry? Not really
14.1.3. Text recognition
Text recognition (sometimes called OCR for optical character recognition).
Scan documents to create an image of the document, but they wanted to be able to edit.
Recognize the words and convert the document from an image to text that you could treat like any other electronic document.
The label says: BROOKLYN COWBOY WINERY
Do its best to find text in an image and turn it into text.
Some subjective aspect to putting text together to be useful.
Easy for us humans to understand what’s written on this card.
Computer, this card presents some difficult aspects.
Text is in a long-hand font with lots of flourishes and overlaps. Second,
the “so” is in a bit of a weird position.
Vision API can understand only the “Evelyn & Sebastian” text at the bottom
and doesn’t find anything else in the image.
{ desc: 'EVELYN & SEBASTIAN\n',
bounds:
[ { x: 323, y: 357 },
{ x: 590, y: 357 },
{ x: 590, y: 379 },
{ x: 323, y: 379 } ] }
{ desc: 'EVELYN',
bounds:
[ { x: 323, y: 357 },
{ x: 418, y: 357 },
{ x: 418, y: 379 },
{ x: 323, y: 379 } ] }
{ desc: '&;',
bounds:
[ { x: 427, y: 357 },
{ x: 440, y: 357 },
{ x: 440, y: 379 },
{ x: 427, y: 379 } ] }
{ desc: 'SEBASTIAN',
bounds:
[ { x: 453, y: 357 },
{ x: 590, y: 357 },
{ x: 590, y: 379 },
{ x: 453, y: 379 } ] }
Understanding images is complicated and computers aren’t quite to
the point where they perform better than humans.
14.1.4. Logo recognition
Logos often tend to be combinations of text and art.
To take down images that contain copyrighted or trademarked material.
Logo detection in the Cloud Vision API comes in.
Find and identify popular logos independent of whether they contain the name
of the company in the image.
Found the following logos: FedEx
Same code again on this logo.
Found the following logos: Tostitos
Logo with no text and an image.
Found the following logos: Starbucks
Found the following logos: Pizza Hut, KFC
14.1.5. Safe-for-work detection
Each workplace would need to make its own decisions about whether something
is appropriate.
Supreme Court of the United States wasn’t quite able to quantify pornography,
famously falling back on a definition of “I know it when I see it.”
Unreasonable to expect a computer to be able to define it.
Fuzzy number is better than no number at all.
Be comfortable relying on this fuzziness because it’s the same vision algorithm
that filters out unsafe images when you do a Google search for images.
Different safe attributes that the Cloud Vision API can detect.
Pornography, known by the API as “adult” content.
Likelihood is whether the image likely contains any type of adult material,
with the most common type being nudity or pornography.
Whether the image represents medical content (photo of surgery or a rash).
Medical images and adult images can overlap, many images are adult content and
not medical.
An image depicts any form of violence.
Violence tends to be something subjective that might differ depending on
who is looking at it.
Safe search is called spoof detection.
Practice detects whether an image appears to have been altered somehow
particularly if the alterations lead to the image looking offensive
putting devil horns onto photos of celebrities, or other similar alterations.
Different categories of safety detection.
Investigate whether you should consider it safe for work.
These true and false values are likelihoods where
LIKELY and VERY_LIKELY become true and anything else becomes false.
14.1.6. Combining multiple detection types
Cloud Vision API was designed to allow multiple types of detection in a single API call.
Call detectText, for example, is specifically asking for only a single aspect to be analyzed.
Use the generic detect method to pick up multiple things at once.
Some labels and logos occur in the image.
Does this image have logos? McDonald's
Are there any labels for the image? crowd
Does this image show violence? No
14.2. Understanding pricing
Cloud Vision follows a pay-as-you-go pricing model where you’re charged a set amount for each API request you make.
You’re charged a set amount for each API request you make.
It’s not each API request that costs money but each type of detection.
You can use a specific Cloud Vision API tier with the first 1,000 requests per month absolutely free.
The examples we went through should cost you absolutely nothing. After those free requests are used up,
Price is $1.50 for every chunk of 1,000 requests ($.0015 per request).
14.3. Case study: enforcing valid profile photos
InstaSnap is a cool application that allows you to upload images and share them with your friends.
Where you might store the images.
Make sure that a profile photo has a person in it?
Should be familiar with the detection type that you’ll need here: faces.

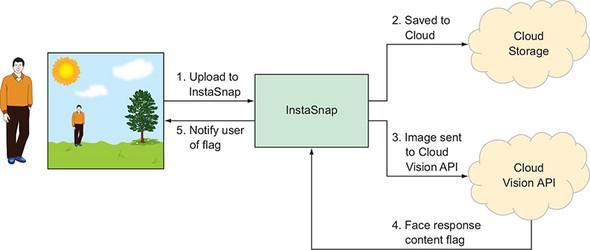

User would start by uploading a potential profile photo to your InstaSnap application (1)
Saved to Cloud Storage (2)
Send it to the Cloud Vision API (3)
Use the response content to flag whether there were faces or not (4)
Pass that flag back to the user (5)
Plug it into your request handler that’s called when users upload new profile photos.
Summary
Image recognition is the ability to take a chunk of visual content (like a photo) and annotate it with information (such as textual labels).
Cloud Vision is a hosted image-recognition service that can add lots of different annotations to photos, including recognizing faces and logos, detecting whether content is safe, finding dominant colors, and labeling things that appear in the photo.
Because Cloud Vision uses machine learning, it is always improving. This means that over time the same image may produce different (likely more accurate) annotations.
