API - Application Programming Interface
An API, or Application Programming Interface, is a software routine that can access
various hardware devices and software systems. For hardware devices, APIs provide a
way to instruct those devices to perform certain operations like turn on lights.
For software systems API’s focus on retrieving data that that system contains.
The Application Program Interface was not originally about routines on the internet
rather a way to communicate with operating systems and hardware.
When computers started to interact with each other standards needed to be created
so one system can perform certain operations on another.
The World Wide Web
With the explosion of the world wide web a need arose to easily share data across
platforms. Salesforce.com and ebay launched API’s which allows their users to provide data to the platforms.
Standards for building these processes were focused around leveraging the
HTTP protocol.
APIs form a foundation for communication on the internet for data sharing and
loading on the web.
Some of the uses of APIs are in:
Payment systems to process credit card payments.
Maps to provide directions or locations.
Logins where you can leverage Google or Facebook user validations for site access.
Whether apps can access data via APIs.
Stock prices can be accessed via finance APIs.
APIs can also be used in operating systems to access video cameras.
Smart home devices can be accessed via API to turn on lights and adjust thermostats.
In factories APIs can access machinery for delivering instructions.PI.
API Architecture
The common API categories used:
REST API (Representational State Transfer) uses HTTP methods
like GET & POST to retrieve and process data.
SOAP (Simple Object Access Protocol) uses XML markup language for processing.
GraphQL developed by Meta for client data retrieval.
gRPC (Google Remote Procedure Call) leveraging protocol buffers sending
data in binary format.
Access type
Public - No restrictions anyone can access.
Private - Developers with credentials to access specific systems.
Partner - Business partners provide access for processing to each other's systems.
The "Language" of APIs: JSON
Most modern APIs speak JSON (JavaScript Object Notation). Even though
WebSockets: Creates a two-way, "always-on" tunnel between the client and server.
Sending Data: The POST Request
When you create a new tweet, sign up for a website, or upload a photo,
you aren't just "getting" data; you are "posting" it to a server.
API Keys: The "Digital Passport"
Most real-world APIs (like OpenAI, Google Maps, or Spotify) aren't free and open.
They need to know who is calling them to prevent abuse or to bill you.
Think of an API Key as a long, random password. You usually send it in the Headers of your request. Here is how that looks in code:
We can use the finance API an open-source Python library to retrieve stock data that is published on the Yahoo Finance site. Currently this is a widely used free of charge access for financial data.

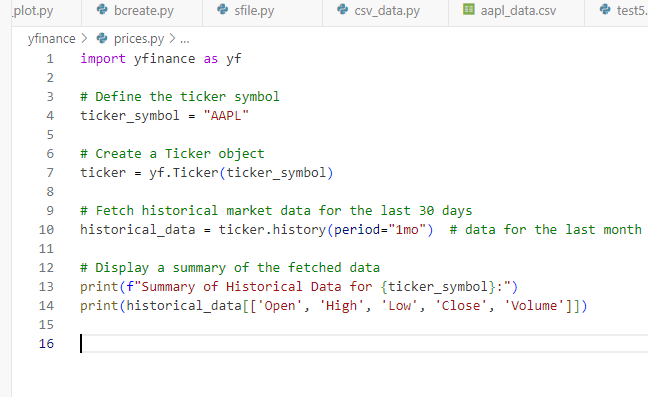

We can go thru some simple methods to pull pricing data.
Start with Apple. The stock ticker used to trade apple is AAPL.
On the Yahoo finance site we can see historical pricing data by accessing the
link to retrieve that data.
The API returns data as Pandas DataFrames.
In order to use you need to install the library on your machine.
john_iacovacci1@cloudshell:~ (cloud-project-examples)$ mkdir yf
john_iacovacci1@cloudshell:~ (cloud-project-examples)$ cd yf
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$ pip install openbb-yfinance
Successfully installed openbb-yfinance-1.5.2 yfinance-0.2.66
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$
Panda libraries need to be installed
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$ pip3 install pandas

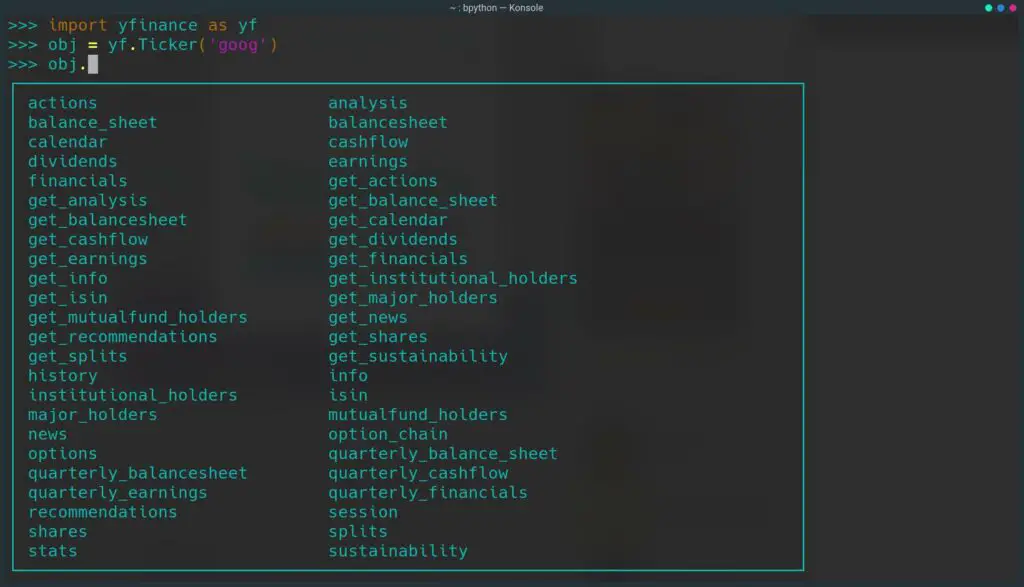

We can now list all the available fields that the yfinance API provides.
all.py
====================================================
import yfinance as yf
# set up tckr
tckr = yf.Ticker("MSFT")
# retrieve information
info = tckr.info
# Use a loop thru info
for key, value in info.items():
txt = "Field name is {} field value is {} "
print(txt.format(key,value))
====================================================
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$ python3 all.py
Field name is address1 field value is One Microsoft Way
Field name is city field value is Redmond
Field name is state field value is WA
Field name is zip field value is 98052-6399
Field name is country field value is United States
Field name is phone field value is 425 882 8080
Field name is website field value is https://www.microsoft.com
Field name is industry field value is Software - Infrastructure
Field name is industryKey field value is software-infrastructure
Field name is industryDisp field value is Software - Infrastructure
Field name is sector field value is Technology
Field name is sectorKey field value is technology
Field name is sectorDisp field value is Technology
Field name is longBusinessSummary field value is Microsoft Corporation develops and supports software, services, devices, and solutions worldwide. The Productivity and Business Processes segment offers Microsoft 365 commercial, enterprise mobility + security, windows commercial, power BI, exchange, sharepoint, Microsoft teams, security and compliance, and copilot; Microsoft 365 commercial products, such as Windows commercial on-premises and office licensed services; Microsoft 365 consumer products and cloud services, including Microsoft 365 consumer subscriptions, office licensed on-premises, and other consumer services; LinkedIn; dynamics products and cloud services, such as dynamics 365, cloud-based applications, and on-premises ERP and CRM applications. Its Intelligent Cloud segment provides Server products and cloud services comprising Azure and other cloud services, GitHub, Nuance Healthcare, virtual desktop offerings, and other cloud services; server products, including SQL and windows server, visual studio and system center related client access licenses, and other on-premises offerings; enterprise and partner services, such as enterprise support and nuance professional services, industry solutions, Microsoft partner network, and learning experience. The Personal Computing segment provides windows and devices, such as Windows OEM licensing and devices and surface and PC accessories; gaming services and solutions, such as Xbox hardware, content, and services, first- and third-party content Xbox game pass, subscriptions, and cloud gaming, advertising, and other cloud services; search and news advertising services that includes Bing and Copilot, Microsoft News and Edge, and third-party affiliates. It sells its products through OEMs, distributors, and resellers; and online and retail stores. The company was founded in 1975 and is headquartered in Redmond, Washington.
Field name is fullTimeEmployees field value is 228000
Field name is companyOfficers field value is [{'maxAge': 1, 'name': 'Mr. Satya Nadella', 'age': 58, 'title': 'Chairman & CEO', 'yearBorn': 1967, 'fiscalYear': 2025, 'totalPay': 12251294, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Mr. Bradford L. Smith LCA', 'age': 66, 'title': 'President & Vice Chairman', 'yearBorn': 1959, 'fiscalYear': 2025, 'totalPay': 4532750, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Ms. Amy E. Hood', 'age': 53, 'title': 'Executive VP & CFO', 'yearBorn': 1972, 'fiscalYear': 2025, 'totalPay': 4444191, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Mr. Takeshi Numoto', 'age': 54, 'title': 'Executive VP & Chief Marketing Officer', 'yearBorn': 1971, 'fiscalYear': 2025, 'totalPay': 2871250, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Mr. Judson B. Althoff', 'age': 51, 'title': 'Executive VP & CEO of Commercial Business', 'yearBorn': 1974, 'fiscalYear': 2025, 'totalPay': 4490115, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Ms. Carolina Dybeck Happe', 'age': 53, 'title': 'Executive VP & COO', 'yearBorn': 1972, 'fiscalYear': 2025, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Ms. Alice L. Jolla', 'age': 59, 'title': 'Corporate VP & Chief Accounting Officer', 'yearBorn': 1966, 'fiscalYear': 2025, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Mr. Matthew Kerner', 'title': 'CTO & Corporate VP of Worldwide Sales and Solutions', 'fiscalYear': 2025, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Jonathan Neilson', 'title': 'Vice President of Investor Relations', 'fiscalYear': 2025, 'exercisedValue': 0, 'unexercisedValue': 0}, {'maxAge': 1, 'name': 'Mr. Jonathan M. Palmer', 'title': 'Corporate Vice President & Chief Legal Officer', 'fiscalYear': 2025, 'exercisedValue': 0, 'unexercisedValue': 0}]
Field name is auditRisk field value is 9
Field name is boardRisk field value is 8
Field name is compensationRisk field value is 5
Field name is shareHolderRightsRisk field value is 2
Field name is overallRisk field value is 5
Field name is governanceEpochDate field value is 1769904000
Field name is compensationAsOfEpochDate field value is 1767139200
Field name is irWebsite field value is http://www.microsoft.com/investor/default.aspx
Field name is executiveTeam field value is []
Field name is maxAge field value is 86400
Field name is priceHint field value is 2
Field name is previousClose field value is 401.72
Field name is open field value is 390.9925
Field name is dayLow field value is 390.0
Field name is dayHigh field value is 396.8
Field name is regularMarketPreviousClose field value is 401.72
Field name is regularMarketOpen field value is 390.9925
Field name is regularMarketDayLow field value is 390.0
Field name is regularMarketDayHigh field value is 396.8
Field name is dividendRate field value is 3.64
Field name is dividendYield field value is 0.93
Field name is exDividendDate field value is 1771459200
Field name is payoutRatio field value is 0.21280001
Field name is fiveYearAvgDividendYield field value is 0.79
Field name is beta field value is 1.084
Field name is trailingPE field value is 24.576971
Field name is forwardPE field value is 20.843594
Field name is volume field value is 41581101
Field name is regularMarketVolume field value is 41581101
Field name is averageVolume field value is 32471926
Field name is averageVolume10days field value is 35807370
Field name is averageDailyVolume10Day field value is 35807370
Field name is bid field value is 393.1
Field name is ask field value is 400.0
Field name is bidSize field value is 2
Field name is askSize field value is 1
Field name is marketCap field value is 2918992052224
Field name is nonDilutedMarketCap field value is 2916341563308
Field name is fiftyTwoWeekLow field value is 344.79
Field name is fiftyTwoWeekHigh field value is 555.45
Field name is allTimeHigh field value is 555.45
Field name is allTimeLow field value is 0.088542
Field name is priceToSalesTrailing12Months field value is 9.5562725
Field name is fiftyDayAverage field value is 445.3536
Field name is twoHundredDayAverage field value is 485.7603
Field name is trailingAnnualDividendRate field value is 3.48
Field name is trailingAnnualDividendYield field value is 0.00866275
Field name is currency field value is USD
Field name is tradeable field value is False
Field name is enterpriseValue field value is 2950157565952
Field name is profitMargins field value is 0.39044
Field name is floatShares field value is 7414861914
Field name is sharesOutstanding field value is 7425629076
Field name is sharesShort field value is 56124540
Field name is sharesShortPriorMonth field value is 54651789
Field name is sharesShortPreviousMonthDate field value is 1768435200
Field name is dateShortInterest field value is 1770940800
Field name is sharesPercentSharesOut field value is 0.0076
Field name is heldPercentInsiders field value is 0.0030899998
Field name is heldPercentInstitutions field value is 0.75859
Field name is shortRatio field value is 1.29
Field name is shortPercentOfFloat field value is 0.0076
Field name is impliedSharesOutstanding field value is 7432377656
Field name is bookValue field value is 52.615
Field name is priceToBook field value is 7.464411
Field name is lastFiscalYearEnd field value is 1751241600
Field name is nextFiscalYearEnd field value is 1782777600
Field name is mostRecentQuarter field value is 1767139200
Field name is earningsQuarterlyGrowth field value is 0.595
Field name is netIncomeToCommon field value is 119262003200
Field name is trailingEps field value is 15.98
Field name is forwardEps field value is 18.84224
Field name is lastSplitFactor field value is 2:1
Field name is lastSplitDate field value is 1045526400
Field name is enterpriseToRevenue field value is 9.658
Field name is enterpriseToEbitda field value is 16.833
Field name is 52WeekChange field value is 0.0109398365
Field name is SandP52WeekChange field value is 0.17593324
Field name is lastDividendValue field value is 0.91
Field name is lastDividendDate field value is 1771459200
Field name is quoteType field value is EQUITY
Field name is currentPrice field value is 392.74
Field name is targetHighPrice field value is 730.0
Field name is targetLowPrice field value is 392.0
Field name is targetMeanPrice field value is 595.99567
Field name is targetMedianPrice field value is 600.0
Field name is recommendationMean field value is 1.2807
Field name is recommendationKey field value is strong_buy
Field name is numberOfAnalystOpinions field value is 53
Field name is totalCash field value is 89461997568
Field name is totalCashPerShare field value is 12.048
Field name is ebitda field value is 175258992640
Field name is totalDebt field value is 123278000128
Field name is quickRatio field value is 1.239
Field name is currentRatio field value is 1.386
Field name is totalRevenue field value is 305453006848
Field name is debtToEquity field value is 31.539
Field name is revenuePerShare field value is 41.1
Field name is returnOnAssets field value is 0.1486
Field name is returnOnEquity field value is 0.34390998
Field name is grossProfits field value is 209498996736
Field name is freeCashflow field value is 53640626176
Field name is operatingCashflow field value is 160506003456
Field name is earningsGrowth field value is 0.598
Field name is revenueGrowth field value is 0.167
Field name is grossMargins field value is 0.68586
Field name is ebitdaMargins field value is 0.57377
Field name is operatingMargins field value is 0.47094002
Field name is financialCurrency field value is USD
Field name is symbol field value is MSFT
Field name is language field value is en-US
Field name is region field value is US
Field name is typeDisp field value is Equity
Field name is quoteSourceName field value is Nasdaq Real Time Price
Field name is triggerable field value is True
Field name is customPriceAlertConfidence field value is HIGH
Field name is postMarketTime field value is 1772240396
Field name is regularMarketTime field value is 1772226003
Field name is exchange field value is NMS
Field name is messageBoardId field value is finmb_21835
Field name is exchangeTimezoneName field value is America/New_York
Field name is exchangeTimezoneShortName field value is EST
Field name is gmtOffSetMilliseconds field value is -18000000
Field name is market field value is us_market
Field name is esgPopulated field value is False
Field name is marketState field value is CLOSED
Field name is corporateActions field value is []
Field name is shortName field value is Microsoft Corporation
Field name is longName field value is Microsoft Corporation
Field name is regularMarketChangePercent field value is -2.2353907
Field name is regularMarketPrice field value is 392.74
Field name is priceEpsCurrentYear field value is 23.476316
Field name is fiftyDayAverageChange field value is -52.613617
Field name is fiftyDayAverageChangePercent field value is -0.11813897
Field name is twoHundredDayAverageChange field value is -93.020325
Field name is twoHundredDayAverageChangePercent field value is -0.19149429
Field name is sourceInterval field value is 15
Field name is exchangeDataDelayedBy field value is 0
Field name is averageAnalystRating field value is 1.3 - Strong Buy
Field name is cryptoTradeable field value is False
Field name is hasPrePostMarketData field value is True
Field name is firstTradeDateMilliseconds field value is 511108200000
Field name is postMarketChangePercent field value is 0.36403677
Field name is postMarketPrice field value is 394.1697
Field name is postMarketChange field value is 1.429718
Field name is regularMarketChange field value is -8.980011
Field name is regularMarketDayRange field value is 390.0 - 396.8
Field name is fullExchangeName field value is NasdaqGS
Field name is averageDailyVolume3Month field value is 32471926
Field name is fiftyTwoWeekLowChange field value is 47.94998
Field name is fiftyTwoWeekLowChangePercent field value is 0.13907011
Field name is fiftyTwoWeekRange field value is 344.79 - 555.45
Field name is fiftyTwoWeekHighChange field value is -162.71002
Field name is fiftyTwoWeekHighChangePercent field value is -0.2929337
Field name is fiftyTwoWeekChangePercent field value is 1.0939837
Field name is dividendDate field value is 1773273600
Field name is earningsTimestamp field value is 1769634000
Field name is earningsTimestampStart field value is 1777496400
Field name is earningsTimestampEnd field value is 1777496400
Field name is earningsCallTimestampStart field value is 1769639400
Field name is earningsCallTimestampEnd field value is 1769639400
Field name is isEarningsDateEstimate field value is False
Field name is epsTrailingTwelveMonths field value is 15.98
Field name is epsForward field value is 18.84224
Field name is epsCurrentYear field value is 16.7292
Field name is displayName field value is Microsoft
Field name is trailingPegRatio field value is 1.4817
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$
Stock prices
We will now cate a python program to retrieve daily prices from microsoft ticker MSF.
msft_price.py
=======================================================
import yfinance as yf
# set up ticker
tckr_sym = "MSFT"
# Build object
tckr = yf.Ticker(tckr_sym)
# retrieve price data
hist_data = tckr.history(period="3mo")
# Data
print(f" Stock/price data for {tckr_sym}:")
print(hist_data[['Open', 'High', 'Low', 'Close', 'Volume']])
=======================================================
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$ python3 msft_price.py
Stock/price data for MSFT:
Open High Low Close Volume
Date
2025-11-28 00:00:00-05:00 486.489626 491.508171 485.541778 490.889587 14386700
2025-12-01 00:00:00-05:00 487.327702 488.744451 483.546324 485.631561 23964000
2025-12-02 00:00:00-05:00 485.611626 492.376185 485.212543 488.884155 19562700
2025-12-03 00:00:00-05:00 475.235297 483.137244 474.117853 476.642090 34615100
2025-12-04 00:00:00-05:00 478.667468 480.223913 475.404895 479.744995 22318200
... ... ... ... ... ...
2026-02-23 00:00:00-05:00 395.000000 395.359985 383.100006 384.470001 43238300
2026-02-24 00:00:00-05:00 384.140015 389.359985 381.709991 389.000000 33884700
2026-02-25 00:00:00-05:00 390.529999 401.470001 390.160004 400.600006 43625500
2026-02-26 00:00:00-05:00 404.709991 407.489990 398.739990 401.720001 34405900
2026-02-27 00:00:00-05:00 390.880005 396.820007 389.880005 392.739990 51276300
[62 rows x 5 columns]
john_iacovacci1@cloudshell:~/yf (cloud-project-examples)$
No comments:
Post a Comment
